TrekCheckpoint ALR 5 Driftless
Original price was: $348.00.$99.99Current price is: $99.99.
- Buy quality, buy with us.
- 100% High-Quality Guarantee
- 100% Quality Satisfaction
- Experience Quality, Shop with Us
Details

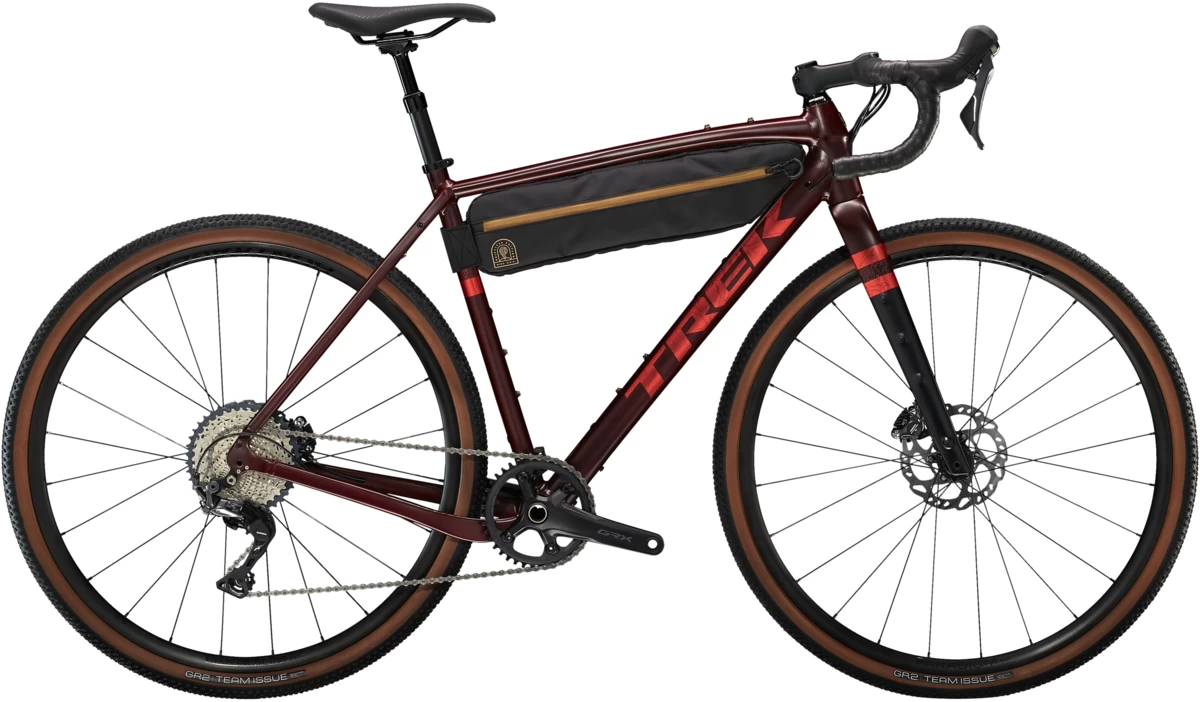

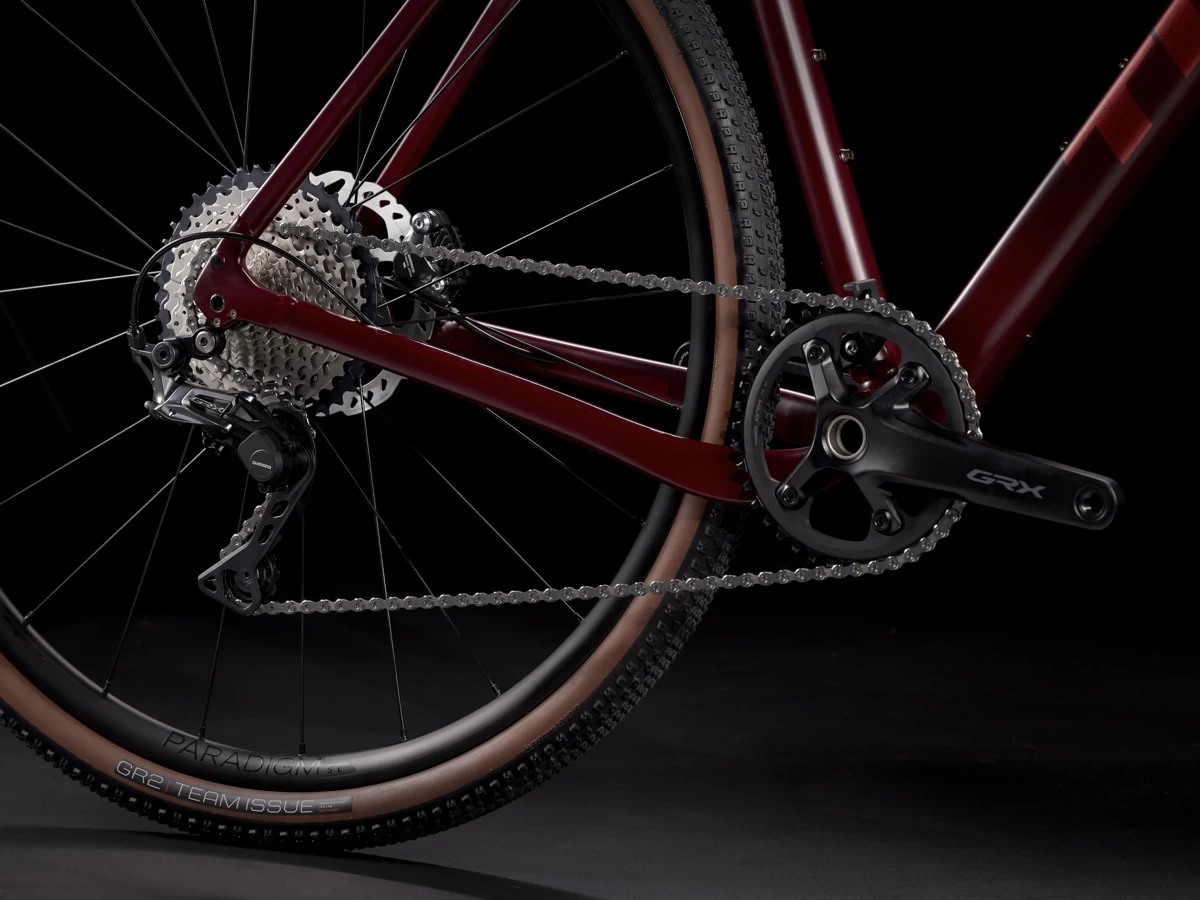

Checkpoint ALR 5 Driftless is a custom-painted, high-quality gravel bike that will hold up for long, rugged miles on pavement, dirt, and even the most treacherous gravel roads. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customize for your kind of adventure.
– All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
– The gorgeous paint scheme and topo map pattern evoke the rugged, hilly escape of Wisconsin’s driftless region—an area untouched by terrain-flattening glaciers
– Comes kitted out with a custom Bontrager frame bag that features the same topo map design as your Checkpoint!
– This bike is exceedingly versatile and suited to a wide variety of ride styles, including gravel rides, bikepacking, and daily commutes
– Integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water
Geometry
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| BB Drop (cm) | 7.8 | 7.8 | 7.6 | 7.6 | 7.4 | 7.4 |
| Chainstay Length (cm) | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Eff. Top Tube (cm) | 54.1 | 55.5 | 57.0 | 58.4 | 59.7 | 61.7 |
| Frame Reach (cm) | 39.3 | 39.9 | 40.3 | 40.7 | 41.1 | 41.7 |
| Frame Size Number (cm) | 49 | 52 | 54 | 56 | 58 | 61 |
| Frame Stack (cm) | 53.8 | 55.3 | 57.1 | 59.2 | 60.9 | 63.9 |
| Head Angle | 71.2° | 71.6° | 71.8° | 72.2° | 72.3° | 72.6° |
| Head Tube Length (cm) | 9 | 10.5 | 12.5 | 14.5 | 16.5 | 19.5 |
| Offset (cm) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Seat Tube (cm) | 49 | 52 | 54 | 56 | 58 | 61 |
| Seat Tube Angle | 74.1° | 73.7° | 73.2° | 72.8° | 72.5° | 72.1° |
| Standover (cm) | 73.5 | 76.5 | 78.9 | 80.9 | 82.9 | 85.9 |
| Trail (cm) | 7.4 | 7.1 | 7 | 6.7 | 6.6 | 6.5 |
| Wheelbase (cm) | 102.5 | 103.3 | 104.1 | 104.8 | 105.8 | 107 |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
Sizing
| Size | Height (cm) |
|---|---|
| 49cm | 156.0 – 163.0cm |
| 52cm | 163.0 – 168.0cm |
| 54cm | 168.0 – 174.0cm |
| 56cm | 174.0 – 180.0cm |
| 58cm | 180.0 – 185.0cm |
| 61cm | 185.0 – 191.0cm |
Due to supply-chain issues, Specs are subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Satin Cobra Blood / 52cm | 601842670361 | 5268083 | CHE40651070D |
| Satin Cobra Blood / 56cm | 601842670347 | 5268085 | CHE40974354D |
| Satin Cobra Blood / 58cm | 601842670330 | 5268086 | CHE40636545D |
| Satin Cobra Blood / 61cm | 601842670323 | 5268087 | CHE40184846D |
| Size | 52cm, 56cm, 58cm, 61cm |
|---|
